10 Best Current Transformer Cables of 2026 for Reliable Performance
When looking for the best current transformer cables in 2026, consider options like the DAOKI SCT013 for its easy installation and strong dielectric strength of 6000V AC. The SCT-013-000 with ADS1115 ADC enhances versatility for Arduino projects. Models like the PZCT-02 and AC Current Sensor Transformers for both 100A and 50A guarantee precise measurements. Pay attention to wire length, output types, and safety ratings to match your needs effectively. You’ll discover more insights as you explore further.
Key Takeaways
- Look for current transformers with a split-core design for easy, non-invasive installation across various applications without disrupting existing electrical systems.
- Select models with a current rating capacity of 100A and accurate performance, ideally with accuracy ratings of ≤0.5 grade for reliable monitoring.
- Ensure compatibility with Arduino or Raspberry Pi for DIY projects; transformers like SCT-013-000 are popular for their versatile integration.
- Choose transformers with a sufficient wire length (around 1 meter) for flexibility while minimizing voltage drops that can affect measurement accuracy.
- Prioritize safety features such as dielectric strength of 6000V AC and environmental resistance ratings, ensuring reliable performance in harsh conditions.

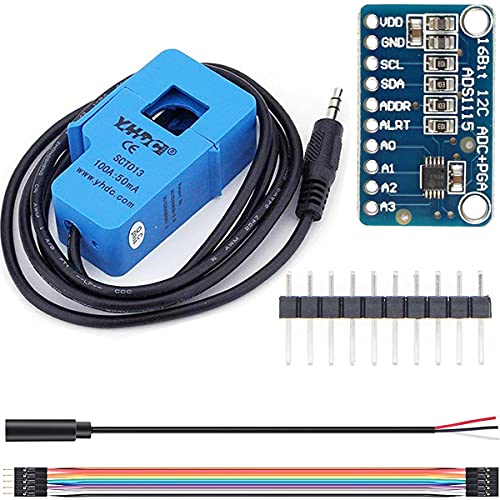

DAOKI SCT013 Split-core Current Transformer Sensor 100A
DAOKI SCT013 Split-core Current Transformer Non-invasive Sensor AC 100A 50MA Split Core with ADS...
- Measurement scenario: This ac current sensor used for measuring alternating current, particularly used for whole building consumption or generation.
- Application scenario：Used for current measurement, monitoring and protection of AC motors, lighting equipment, air compressors, etc.
- Construction and protection：Use this split core current sensor to build your own energy monitor, reducing your power usage, or use it build an over-current protection...
You may be interested
The DAOKI SCT013 Split-core Current Transformer Sensor 100A is an excellent choice for anyone looking to measure AC current easily and accurately. This non-invasive sensor supports input currents from 0 to 100A, making it versatile for various applications, like whole building consumption or AC motors. It features a 1-meter lead for flexibility during installation, with a 3.5mm cable jack similar to a headphone jack. The dielectric strength of 6000V AC guarantees robust safety, and its flame retardant rating of UL94-V0 meets strict safety standards. This sensor also allows for custom energy monitor creation, enhancing energy efficiency effectively.
Best For: The DAOKI SCT013 Split-core Current Transformer Sensor is best for energy management professionals and DIY enthusiasts looking to monitor and optimize AC current usage in various applications.
Pros:
- Non-invasive design allows for easy installation without disrupting existing electrical systems.
- High safety standards with a dielectric strength of 6000V AC and flame retardant rating ensure reliable operation.
- Versatile applications enable monitoring of whole building consumption, motors, lighting, and more, making it a flexible solution.
Cons:
- Requires a burden resistor for voltage output, which may complicate setup for some users.
- Limited to 100A input, which may not be suitable for certain high-demand applications.
- 3.5mm cable jack may not be compatible with all monitoring or metering equipment without proper adapters.
Current Transformer SCT-013-000 with ADS1115 ADC Conversion Board
DAOKAI Current Transformer SCT-013-000 Non-invasive Split Core Current Transformer AC 100A/50mA...
- WHAT IT DOES: Use this split core current sensor to build your own energy monitor, reducing your power usage, or use it build an over-current protection device for an AC...
- SPECIFICATION: Input Current: 0~100A AC,Voltage: 1V.;Length of Leading Wire: 1m;Two Form of Output: current output or voltage output (burden resistor needed to add);Cable...
- DIY USE: This split current transformer is especially suitable for DIY use and is compatible with for arduino and for raspberry pi.
For anyone looking to build energy monitors or over-current protection devices for AC loads, the SCT-013-000 current transformer paired with the ADS1115 ADC conversion board stands out as a top choice. This non-invasive split core transformer can handle input currents up to 100A AC and outputs a current of 50mA or 1V, depending on your setup. It’s designed with DIY enthusiasts in mind, fitting seamlessly with Arduino and Raspberry Pi projects. The system also includes essential safety features, like a dielectric strength of 6000V AC and flame retardant materials. With all necessary components, it’s easy to get started on your energy-monitoring journey.
Best For: DIY enthusiasts and developers looking to create energy monitoring systems or over-current protection devices for AC loads.
Pros:
- Versatile compatibility with Arduino and Raspberry Pi for DIY projects.
- High input current capacity of up to 100A AC for effective energy monitoring.
- Built-in safety features, including 6000V AC dielectric strength and flame retardant materials.
Cons:
- Requires additional setup with burden resistor for voltage output configurations.
- Non-invasive installation may not be suitable for all user environments or preferences.
- Output current is limited to 50mA, which may restrict certain applications without additional circuitry.
PZCT-02 Split Core Current Transformer Coil Sensor for 100A Meter
PZCT-02 Split Core Current Transformer Coil Sensor for 100A Meter
- SMALL AND LIGHT: This current transformer Built-in input coil; small and light, easy to install.
- SNAP JOINT STRUCTURE:The diameter of inner hole is 16mm, the accuracy is 0.5 grade, Using snap joint structure, it can be fixed to the cable directly through nylon ties.
- GOOD MECHANICAL PROPERTIES: Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, safety and reliability.
Designed specifically for 100A meters, the PZCT-02 Split Core Current Transformer Coil Sensor stands out as an efficient solution for accurately measuring electrical currents in various applications. Its small and lightweight design makes installation straightforward, as you can easily secure it to cables using nylon ties. With a 16mm inner hole diameter, it’s the smallest in its category. This sensor offers an accuracy of 0.5 grade and outputs 100mA, ensuring compatibility with AC 220V and 380V power supplies. Its fully enclosed design provides excellent mechanical properties, environmental resistance, and robust voltage isolation for safe, reliable operation.
Best For: The PZCT-02 Split Core Current Transformer Coil Sensor is best for electricians and technicians looking for a compact and efficient solution for measuring electrical currents in residential and industrial settings.
Pros:
- Small and lightweight design facilitates easy installation and portability.
- High accuracy of 0.5 grade guarantees reliable current measurements.
- Fully enclosed design ensures safety with excellent environmental resistance and voltage isolation.
Cons:
- Limited to 100A may not be suitable for applications requiring higher current measurements.
- Requires additional nylon ties for installation, which may not be included in the purchase.
- Compatibility only with AC 220V and 380V restricts use in other voltage systems.
AC Current Sensor Transformer for 100A Amp Energy Meter
AC Current Sensor Transformer, Core Current Transformer Coil Sensor for 100A Amp Energy Meter
- All-Scenario No-Power-Cut Current Monitoring：scenarios like live retrofits in substations/workshops, online monitoring for motors/frequency converters...
- Split Core Structural Advantage - Detachable core design eliminates the need for cable threading or power-off during installation, solving the pain point of difficult...
- Stable Accuracy and Broad Compatibility—Featuring accuracy classes ranging from 0.5 to 1, with a 24mm inner diameter, it meets daily current measurement needs...
An AC Current Sensor Transformer for 100A Amp Energy Meter stands out as a powerful tool for professionals involved in monitoring electrical current. This device offers a detachable core design, enabling installation without the need to power off or thread cables, which can save you time and effort. With an accuracy class range of 0.5 to 1 and an inner diameter of 24mm, it accommodates currents from 50A to 1000A. Its flexibility makes it compatible with various AC circuits, and it provides electrical isolation between circuits, thereby enhancing safety. Use it effectively in industrial or building applications to improve operational efficiency.
Best For: Professionals in electrical engineering and maintenance who require efficient and safe current monitoring solutions.
Pros:
- Quick Installation: Detachable core design allows for easy setup without power interruption, taking less than 5 minutes.
- High Accuracy: Offers accuracy classes from 0.5 to 1, ensuring reliable measurements for precise monitoring.
- Versatile Compatibility: Works with a range of AC circuits and commonly used monitoring devices, enhancing flexibility in various applications.
Cons:
- Limited to AC Circuits: Specifically designed for AC circuits (0.4kV and below), which may not suit all monitoring needs.
- Inner Diameter Restriction: The 24mm inner diameter may not accommodate all conductor sizes, potentially limiting its use in some installations.
- Specific Current Range: While it handles currents between 50A and 1000A, it may not be suitable for low or very high current applications.

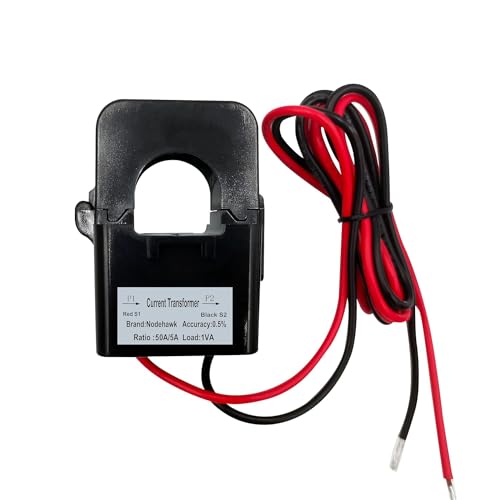

AC Current Sensor Transformer for 50A Energy Meter
AC Current Sensor Transformer, Core Current Transformer Coil Sensor for 50A Amp Energy Meter
- SMALL AND LIGHT: This current transformer Built-in input coil; small and light, easy to install.
- SNAP JOINT STRUCTURE:The diameter of inner hole is 24mm, the accuracy is 0.5 grade, Using snap joint structure, it can be fixed to the cable directly through nylon ties.
- GOOD MECHANICAL PROPERTIES: Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, safety and reliability.
The AC Current Sensor Transformer, specifically designed for a 50A energy meter, stands out as an ideal choice for both professionals and hobbyists seeking reliable energy monitoring. This mini split base current transformer is the smallest in its class, offering a compact design with a 24mm inner hole diameter. Its built-in input coil simplifies installation, allowing you to secure it directly to cables using nylon ties. With an accuracy rating of 0.5 grade, it operates effectively at AC voltages of 220V and 380V. Durable and fully enclosed, it guarantees safety with strong voltage isolation, making it perfect for energy meter applications.
Best For: Professionals and hobbyists seeking a compact and reliable solution for monitoring energy usage in 50A energy meters.
Pros:
- Compact design allows for easy installation in tight spaces.
- High accuracy rating of 0.5 grade ensures reliable measurements.
- Durable and fully enclosed structure provides enhanced safety and environmental resistance.
Cons:
- Limited to specific current rating of 50A, which may not suit all applications.
- May require additional accessories such as nylon ties for secure installation.
- Compatibility with only AC voltages of 220V and 380V, limiting its use in other systems.

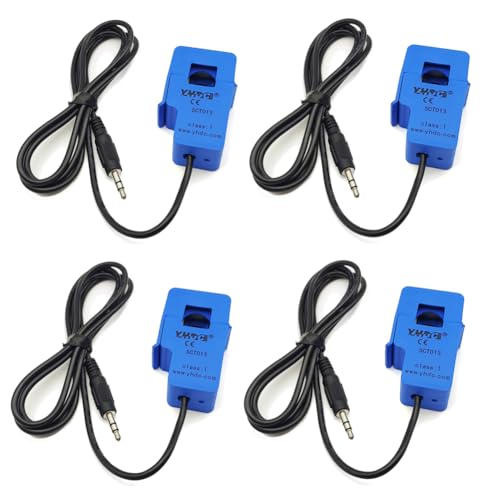

4PCS SCT-013-020 Non-invasive Split Core Current Transformer Sensor
SazkJere 4PCS SCT-013-020 20A Non-invasive Split Core Current Transformer Sensor SCT013 (20A 1V)
- Split-Core Current Transformer Size: 56*32*21mm, Weight: 72g, Leading Wire in Length: About 1m.
- The standard Φ3.5 three-core plug output, the current and voltage two kinds of output. Hanging installation, lead output.
- Input Current: 0~20A AC, Voltage: 1V. Model: SCT013.
For anyone looking to monitor electrical currents with ease, the PCS SCT-013-020 Non-invasive Split Core Current Transformer Sensor stands out as an exceptional option. Measuring 56mm x 32mm x 21mm and weighing just 72g, this sensor is designed for simple installation. Its non-invasive split-core design allows you to install it without disrupting your wiring. It can handle input currents up to 20A AC and outputs a voltage of 1V. Also, it’s compatible with Arduino and Raspberry Pi, making it perfect for DIY projects. With a lead length of approximately 1m, it’s ideal for monitoring various electrical devices, including motors and lighting.
Best For: Individuals and DIY enthusiasts looking for an easy-to-install current transformer sensor for monitoring electrical currents in various applications.
Pros:
- Easy Installation: Non-invasive split-core design allows for quick and hassle-free setup without wiring disruption.
- Versatile Compatibility: Works seamlessly with Arduino and Raspberry Pi, making it ideal for a variety of DIY projects.
- Wide Application Range: Suitable for monitoring AC motors, lighting, and air compressors for current protection and control.
Cons:
- Limited Current Capacity: Only handles input currents up to 20A AC, which may not be sufficient for all applications.
- Voltage Output Restriction: The output voltage of 1V might limit its use in scenarios requiring higher voltage readings.
- Lead Length Limitation: The 1m lead length may restrict placement options in some installations.
ZCZQC SCT-013 Non-invasive AC Current Sensor
Current Transformer ZCZQC Blue SCT-013 0-100A Non-invasive AC Current Sensor Split-Core Clamp...
- Material: Ferrite, Current: 0~100A AC.
- Lead wire length: 1m; two output forms: current output or voltage output (need to add load resistance); cable jack: 3.5 mm (such as headphone jack).
- Wide range of applications: suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement and overcurrent protection.
Looking for a reliable and non-invasive tool to measure AC current? The ZCZQC Blue SCT-013 Non-invasive AC Current Sensor is an excellent choice. This split-core clamp current transformer accommodates a current range of 0-100A AC, making it versatile for various applications like lighting equipment and AC motors. With a 1m lead wire, it’s easy to position wherever necessary. You can use it with current or voltage outputs, although a load resistance is needed for voltage. Its compact design features a smooth, translucent finish, exhibiting fine craftsmanship. Ideal for monitoring and overcurrent protection, this sensor is essential for accurate measurements.
Best For: Those in need of an accurate and non-invasive solution for measuring AC current in various electrical applications.
Pros:
- Versatile current range of 0-100A AC, suitable for various devices such as lighting equipment and AC motors.
- Compact design with a smooth, translucent finish, making it visually appealing and easy to integrate into different setups.
- Non-invasive operation, allowing for easy installation and monitoring without disrupting existing electrical systems.
Cons:
- Requires load resistance for voltage output, which may complicate setup for some users.
- Limited to AC current measurements, not suitable for DC applications.
- 3.5 mm cable jack compatibility, which may necessitate additional adapters for some devices.
PZCT-02 Split Core Current Transformer for 100A Energy Meter
PZCT-02 Current Transformer Snap Joint Structure Split Core Coil Sensor for 100A Meter Mini Split...
- Ultra Compact Design: The mini split base current transformer is the smallest in its category, offering a compact and space-saving solution for current measurement...
- High Accuracy: With a diameter of the inner hole measuring 16mm and an accuracy of ≤0.5 grade, this current transformer ensures and measurements, making it ideal for...
- Easy Installation: Featuring a snap joint structure, the transformer can be effortlessly fixed to the cable directly through the use of nylon ties, simplifying the...
When you need a reliable current transformer for energy metering, the PZCT-02 Split Core Current Transformer stands out with its compact design and impressive specifications. This model is specifically tailored for 100A energy meters and features a 16mm inner hole diameter. With an accuracy rating of ≤0.5 grade, it operates efficiently across a temperature range of -40 to +85°C, and supports relative humidity up to 90% at 40°C. Weighing only 59g, its snap joint structure allows for easy installation, eliminating the need for power interruptions. Its dielectric strength of 1000V guarantees safety in various applications, making it an excellent choice for reliable performance.
Best For: The PZCT-02 Split Core Current Transformer is best for energy meter applications requiring precise and compact current measurement.
Pros:
- Ultra compact and lightweight design, making it easy to install in tight spaces.
- High accuracy rating of ≤0.5 grade, ensuring reliable current measurements.
- Snap joint structure allows for quick and tool-free installation without needing to interrupt power supply.
Cons:
- Limited to a maximum measuring range of 100A, which may not suit larger current applications.
- Installation requires proper handling to avoid open circuit conditions on the secondary side.
- Operating conditions are confined to specific temperature and humidity ranges, which may not be suitable for all environments.
DAOKI AC PZEM-004T Multimeter Module for Current and Voltage Testing
DAOKI AC 80-260V 100A PZEM-004T Multimeter Module Current Voltage Power Meter Ampere Current Test...
- Measurement reading: voltage, current, active power and electric energy measurement, equipped with TTL serial data communication interface, you can read and set related...
- Considerations:This module is suitable for indoor, not outdoor use,the applied load should not exceed the rated power, the wiring can not be wrong.
- Voltage and current: The module has an AC 80-260V voltage test range, a working voltage of 80-260V, and a maximum current of 100A.
The DAOKI AC PZEM-004T Multimeter Module stands out for those needing accurate measurements of current and voltage in various electrical applications. This module measures voltage from 80 to 260V and current up to 100A. It’s designed for indoor use, ensuring it operates safely and effectively within its limits. The built-in TTL serial data communication interface lets you read and adjust parameters simply. Additionally, its durable construction features 100% original electronic components, guaranteeing reliability. Remember to follow proper wiring practices to avoid measurement errors. With its thorough features, the DAOKI PZEM-004T is an excellent choice for effective current and voltage testing.
Best For: Individuals and professionals seeking accurate and reliable measurements of current and voltage for electrical testing in indoor environments.
Pros:
- Measures a wide voltage range (80-260V) and high current (up to 100A), making it versatile for various applications.
- Equipped with a TTL serial data communication interface for easy parameter adjustments and readings.
- Constructed from high-quality, original electronic components, ensuring durability and reliability.
Cons:
- Designed solely for indoor use, limiting its application in outdoor or harsh environments.
- Requires proper wiring practices, which may require additional knowledge or skills to avoid errors.
- Maximum power limitations need to be adhered to, which may restrict usage in high-load scenarios.
SCT-013-000 Non-invasive Split Core Current Transformer with ADS1115 ADC Module
DKARDU SCT-013-000 Non-invasive Split Core Current Transformer 100A/1V AC Current Sensor + ADS...
- What it does: Use this split core current sensor to build your own energy monitor, reducing your power usage, or use it build an over-current protection device for an AC...
- Safety index：Dielectric strength (between shell and output) 6000V AC/1min Flame retardant characteristics meet UL94-V0.
- Specification：Input Current: 0~100A AC,Voltage: 1V.;Length of Leading Wire: 1m;Two Form of Output: current output or voltage output (burden resistor needed to...
For those interested in energy monitoring and protection solutions, the SCT-013-000 Non-invasive Split Core Current Transformer represents a top choice due to its user-friendly design and impressive specifications. This transformer handles input currents of 0 to 100A AC with a voltage output of 1V. Its dielectric strength of 6000V guarantees safety during operation, while its flame-retardant materials comply with UL94-V0 standards. Designed for DIY enthusiasts, it’s compatible with Arduino and Raspberry Pi. With a one-meter leading wire and diverse output options, the SCT-013-000 is perfect for monitoring AC motors, lighting, and air compressors effectively.
Best For: DIY enthusiasts and developers looking for an effective solution for energy monitoring and over-current protection in AC applications.
Pros:
- User-friendly design allows for easy integration with Arduino and Raspberry Pi.
- High safety features with a dielectric strength of 6000V and flame retardant materials.
- Versatile applications for monitoring a variety of AC loads including motors and lighting.
Cons:
- Requires additional components such as a burden resistor for certain output options.
- Non-invasive installation may still require proper understanding and handling of electrical systems.
- Limited input current range of 0-100A may not suit all high-load applications.
Factors to Consider When Choosing a Current Transformer Cable
When selecting a current transformer cable, consider key factors like current rating capacity and wire length preference. Take into account the output signal type and installation ease to guarantee a hassle-free setup. Additionally, don’t overlook compliance with safety features, as they can greatly impact both performance and reliability.
Current Rating Capacity
Choosing the right current transformer cable involves considering its current rating capacity, which determines how much AC current the cable can handle safely. Typically, a split-core current transformer can measure input currents ranging from 0 to 100A. To achieve optimal performance, it’s essential that the transformer’s rated current matches your expected load current; this prevents saturation and guarantees accurate readings. You should also look at both the primary current rating and the output current specification, as these dictate the operational limits of connected monitoring devices. Additionally, consider the dielectric strength of the cable, usually rated around 6000V AC, to guarantee it can safely handle high voltage levels during operation without risk of breakdown.
Wire Length Preference
The wire length plays an essential role in the performance of a current transformer cable, impacting both accuracy and installation flexibility. Typically, a wire length of about 1 meter is sufficient for various setups. However, longer wires can introduce voltage drops, which may jeopardize the accuracy of the current readings. If you prefer shorter wires, they simplify installation and reduce clutter, but they may limit transformer placement options. It’s important to choose a length that accommodates the distance from the transformer to your measuring device, ensuring reliability in signal transmission. Adequate wire length not only enhances positioning flexibility but also promotes easier maintenance access, making it critical to evaluate for peak performance.
Output Signal Type
Selecting the right output signal type is essential for optimizing the performance of your current transformer cable. These devices typically offer either current output, such as 50mA or 100mA, or voltage output, like 1V. Your choice should match the requirements of your monitoring system, as some applications demand specific output formats for compatibility. Additionally, many current transformers need a burden resistor to convert current output into a usable voltage level for your measurement equipment. This output type influences integration processes; different circuits may favor one method due to design or safety factors. Always verify the output signal type fits the input specifications of your data acquisition system to prevent damage and maintain accurate readings.
Installation Ease Factor
Installation ease is a critical factor when considering current transformer cables. Look for caps that feature a snap joint structure, which allows you to directly fix them to cables using nylon ties. This feature simplifies the installation process considerably. Opt for models with a detachable core design that lets you install them without threading cables or shutting down power, thereby reducing assembly time. Additionally, choose devices with a leading wire length of about 1 meter for better reach. Lightweight and compact transformers facilitate easier handling, especially in tight spaces. Finally, verify compatibility with standard cable jacks, like 3.5mm plugs, for quick and straightforward connections to your equipment. All these factors enhance the overall installation experience.
Safety Features Compliance
When choosing a current transformer cable, safety features compliance is essential for guaranteeing reliable operation. Look for cables that meet stringent dielectric strength requirements, often rated at 6000V AC for one minute, which enhances operational safety. Additionally, select cables with flame retardant characteristics, complying with UL94-V0 to mitigate fire hazards. Insulation properties should be robust, typically exceeding 1000MΩ, to guarantee safe performance across various environments. It’s equally important to take into account environmental resistance, with cables adequately rated for temperature ranges from -40°C to +85°C and humidity levels up to 90% at 40°C. Finally, opt for fully enclosed designs that enhance mechanical properties and provide superior voltage isolation, reducing the risk of electrical shocks and improving durability in diverse settings.
Compatibility With Devices
Verifying compatibility with your devices is essential for optimizing the performance of current transformer cables. First, confirm that the cable’s output type, whether current or voltage, matches your monitoring device‘s input requirements. You’ll also want to check the cable jack size; many current transformers use a 3.5mm jack, so verify it fits correctly. Next, verify the current rating of the transformer, such as 0-100A or 0-20A, to align with your application’s needs, preventing damage or inaccurate readings. Consider the leading wire length, especially if your transformer is far from the monitoring device. Finally, verify compatibility with popular platforms like Arduino or Raspberry Pi for smoother DIY integrations, enhancing your project’s overall versatility and functionality.
Frequently Asked Questions
What Is the Lifespan of a Current Transformer Cable?
The lifespan of a current transformer cable typically ranges from 20 to 30 years, depending on factors like environmental conditions and usage. When you properly install and maintain these cables, including avoiding moisture and extreme temperatures, they perform better and last longer. Some high-quality cables use durable materials to resist wear and tear, which can extend their life even further. Regular inspections can help identify issues before they shorten the cable’s lifespan.
How Do I Maintain My Current Transformer Cables?
To maintain your current transformer cables, regularly inspect them for signs of wear, such as fraying or insulation damage. Keep cables clean and dry, avoiding exposure to extreme temperatures or moisture. Secure connections and check coupling joints for tightness at least quarterly. Use a multimeter to test impedance levels, ensuring they align with specifications, often around 1Ω. Replace cables showing consistent performance issues to maintain reliable operation and prolong the system’s lifespan.
Are These Cables Waterproof or Weather-Resistant?
Most current transformer cables are designed to be weather-resistant but not completely waterproof. These cables typically include materials like PVC or silicone for protection against moisture and UV exposure. Check the specifications for IP ratings; an IP67 rating indicates total dust protection and temporary immersion in water up to 1 meter. For outdoor use, guarantee the cable’s insulation can withstand temperature extremes, such as operating between -20°C and +60°C.
Can I Use These Cables for Solar Power Systems?
Yes, you can use these cables for solar power systems. They’re designed to handle various electrical loads and have excellent insulation, guaranteeing safety and efficiency in solar installations. Typically, these cables are rated for up to 600 volts, providing reliable power transfer. Make sure that the gauge of the cable matches your system’s requirements; this prevents energy losses and maintains peak performance. Always check for specific certifications to confirm compatibility with solar applications.
What Is the Warranty Period for Current Transformer Cables?
The warranty period for current transformer cables typically ranges from 1 to 10 years, depending on the manufacturer. Most reputable brands provide a minimum of 5 years, guaranteeing you have reliable protection against defects. It’s important to carefully review the warranty details, as some may cover specific components while others extend to the entire product. This helps confirm you’re making a sound investment, especially for vital applications in power systems or industrial setups.
